Heavy Saddle
Application:
Heavy saddle is recommended for supporting a piping system of heavy weight with fittings vertically or horizontally to walls or ceilings. It can be used to mount electrical & and insulated pipes, corner locking & and better gripping electrical conduits.
Finish Available:
- Plain, Electro-Galvanized, Hot Dip Galvanized, CPVC,UPVC
| Dimension 1 (Inch) | Dimension 2 (Inch) | Dimension 3 (Inch) | Weight (KG) |
|---|---|---|---|
| 3/8 | 3/4 | 1 1/8 | 250 |
| 1/2 | 3/4 | 1 ΒΌ | 350 |
| Size | Dimension 1 (mm) | Dimension 2 (mm) | Weight (KG) |
|---|---|---|---|
| M10 | 19 | 29 | 250 |
| M12 | 19 | 31 | 350 |

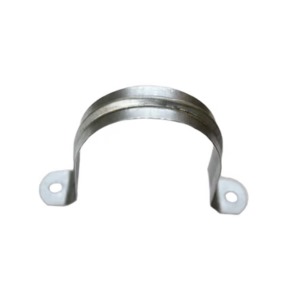

Light Saddle
Application:
Light saddle is recommended for supporting a piping system with vertically or horizontally to walls or ceilings.
Finish Available:
- Plain, Electro-Galvanized, Hot Dip Galvanized.
| NOMINAL PIPE SIZE | DIA (MM) | SCREW (MM) |
|---|---|---|
| 1/2" DN 15 | 21.3 | M6 |
| 3/4" DN 20 | 26.7 | M6 |
| 1" DN 25 | 33.4 | M6 |
| 1 1/4" DN 32 | 42.1 | M6 |
| 1 1/2" DN 40 | 48.2 | M6 |
| 2" DN 50 | 60.3 | M6 |
| 2 1/2" DN 65 | 73.0 | M6 |
| 3" DN 80 | 55.9 | M6 |
| 4" DN 100 | 114.3 | M6 |
| 6" DN 150 | 168.3 | M6 |
